Draw a Wrench in AutoCAD

A wrench (also called a spanner) is a tool used to provide grip and mechanical advantage in applying torque to turn objects—usually rotary fasteners, such as nuts and bolts—or keep them from turning

Draw a Wrench in AutoCAD

Here is a short list of wrenches which you can have more details about in wikipedia

cad exercises

The box-end wrench, the spark plug wrench, the combination wrench, the open-end wrench, the flare-nut wrench, the ratcheting box wrench, the Saltus wrench, the spanner wrench, the slammer wrench, the adjustable wrench (seen on the image above), the self-adjusting wrench, the monkey wrench and many others.

Draw a Wrench in AutoCAD.

We are going to have fun drawing the open-end wrench below using AutoCAD.

wrench-dimensions

And Yes!

The most tricky part to draw are those two ends.

You want to be able to draw this

Draw a Wrench in AutoCAD

And use the same technique to have the other end done.

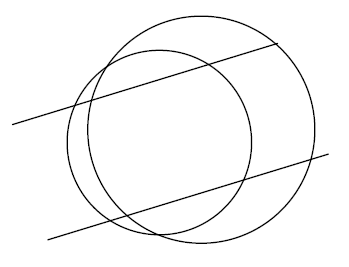

May be if I had shown the following figure to you, it will look easier, let try this, look at the picture below

Draw a Wrench in AutoCAD

Easier now?

Well! let me explain, drawing those two circles with their centers placed one away from each other with the dimension mentioned on the image will have almost all done.

To obtain the figure inside, you can proceed like this

Draw a Wrench in AutoCAD

Draw the figure on the left and rotate it with an angle of 17 degree about the center of the circle. Using this and the instructions given earlier, you will end up with this

Draw a Wrench in AutoCAD

Another Hint you may need is the following. If you had a look at this AutoCAD exercise, it should be not problem getting the following image

Draw a Wrench in AutoCAD

After cleaning up you should end with the following one

Draw a Wrench in AutoCAD

Use what you just learned to have the other end done.

What if we wanted to use this model to get the 3D equivalent of this wrench.

We will piece it up like this

Draw a Wrench in AutoCAD

If we EXTRUDE A with 5, B and C with 6 we are getting this.

Draw a Wrench in AutoCAD

Bringing them together

Draw a Wrench in AutoCAD

And rendering the final image. (You can use the FILLET command to polish those edges for them not to be too “sharpy”)

Draw a Wrench in AutoCAD

You have just learned how to draw a wrench in AutoCAD.
